YJV22GB/T 12706.1 / IEC 60502-1

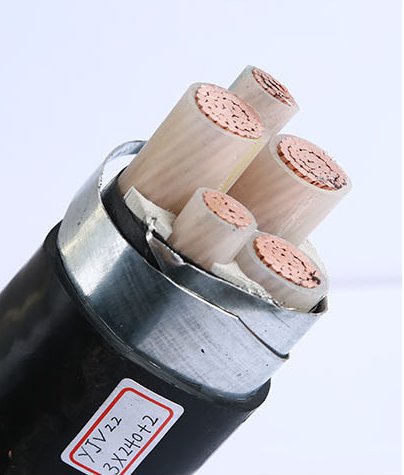

Steel Tape Armoured Power Cable YJV22
0.6/1 kV XLPE power cable with steel-tape armour — mechanical protection for buried, duct and industrial installations.
Type
Armoured XLPE power cable
Standard
GB/T 12706.1 / IEC 60502-1
Voltage Rating
0.6/1 kV
Conductor
Class 1/2 bare copper or aluminum
Jacket
Steel tape armour + PVC sheath
- ✓0.6/1 kV rated to GB/T 12706.1 and IEC 60502-1
- ✓Steel-tape armour protects against impact, crushing and rodents
- ✓XLPE insulation, 90 °C conductor temperature
- ✓1–5 cores, 4–240 mm² (larger on request)
- ✓First choice for direct burial and duct installations
- ✓Flame-retardant and low-smoke options available
Full Specifications
Overview
Type
Steel tape armoured XLPE power cable
Standard
GB/T 12706.1-2020, IEC 60502-1
Rated Voltage
0.6/1 kV (U0/U)
Rated Temperature
90 °C (max conductor temperature)
Application
Direct burial, ducts, industrial plants, infrastructure projects
Core Configurations
1, 2, 3, 4, 5 cores × 4–240 mm²
Construction
Conductor
Class 1/2 bare copper (aluminum option)
Insulation
XLPE
Armour
Galvanized steel tape, two layers
Outer Sheath
PVC, black
Bedding
PVC or PE inner sheath under armour
Electrical Performance
Voltage Test
3.5 kV AC, 5 min
Conductor Resistance
Meets IEC 60228
Mechanical Protection
High — steel tape armour
Flammability
Flame-retardant per IEC 60332-1; LSZH option
Packaging
Standard Length
500 m, 1000 m drums (by cross-section)
Packaging
Wooden or steel drums
Certifications
CCC, CE, RoHS, ISO 9001
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
