YJVGB/T 12706.1 / IEC 60502-1
XLPE Insulated Power Cable YJV
0.6/1 kV XLPE insulated, PVC sheathed power cable, 1.5–240 mm² — higher ampacity for power distribution and mains supply.
Type
XLPE insulated power cable
Standard
GB/T 12706.1 / IEC 60502-1
Voltage Rating
0.6/1 kV
Conductor
Class 1/2 bare copper or aluminum
Jacket
PVC sheath
- ✓0.6/1 kV rated to GB/T 12706.1 and IEC 60502-1
- ✓XLPE insulation for 90 °C conductor temperature — ~20% more ampacity than PVC
- ✓1–5 cores, 1.5–240 mm² (copper), larger on request
- ✓Single core, multi-core, flat and round constructions
- ✓For power distribution, mains supply and industrial feeders
- ✓Flame-retardant and low-smoke options available

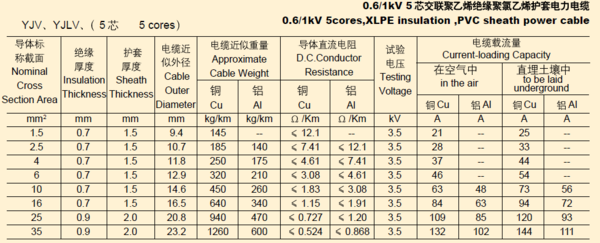

Full Specifications
Overview
Type
XLPE insulated, PVC sheathed power cable
Standard
GB/T 12706.1-2020, IEC 60502-1
Rated Voltage
0.6/1 kV (U0/U)
Rated Temperature
90 °C (max conductor temperature)
Application
Power distribution, mains supply, industrial feeders, substations
Core Configurations
1, 2, 3, 4, 5 cores × 1.5–240 mm²

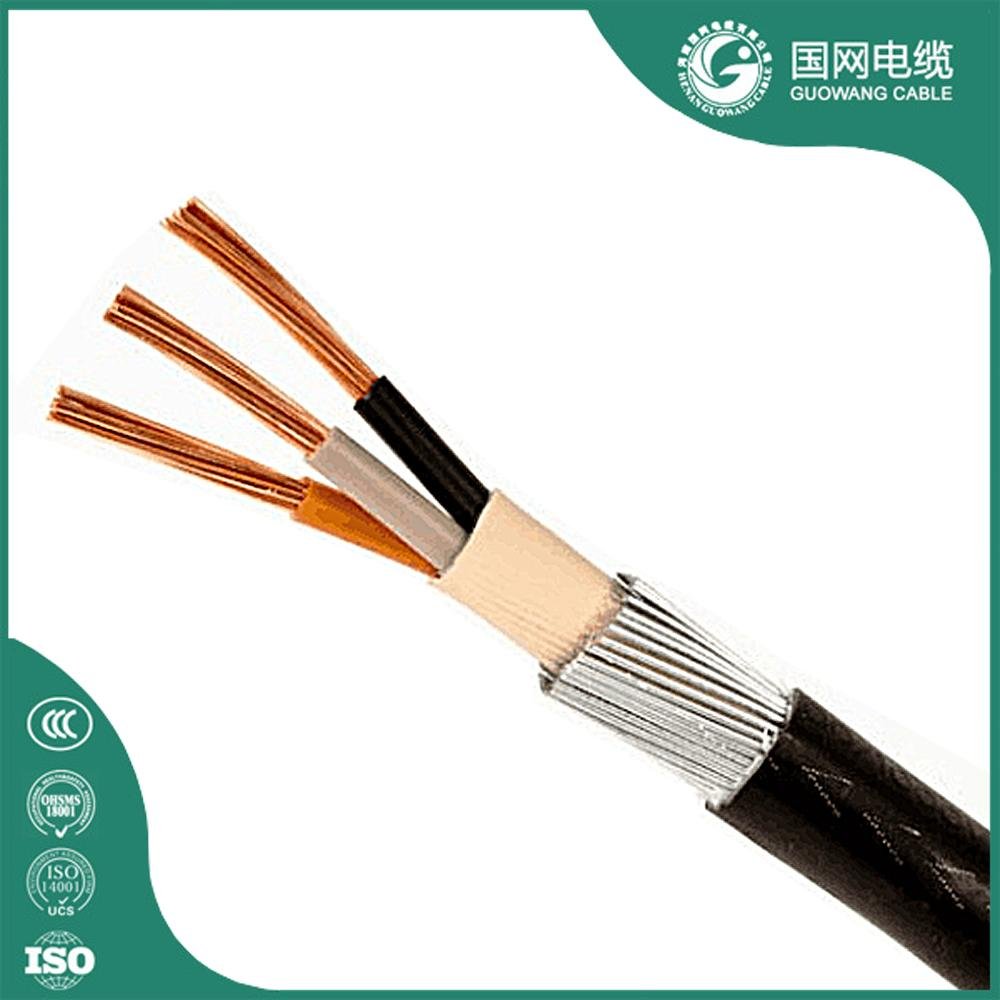

Construction
Conductor
Class 1 solid or Class 2 stranded bare copper (aluminum option)
Insulation
XLPE (cross-linked polyethylene)
Inner Sheath
Optional PVC or PE
Outer Sheath
PVC, black or custom
Armour
Unarmoured (YJV); steel tape option YJV22
Electrical Performance
Voltage Test
3.5 kV AC, 5 min
Conductor Resistance
Meets IEC 60228
Ampacity
Per IEC 60502 / GB/T 16895 — higher than PVC insulated at same size
Short Circuit
250 °C max conductor temperature (5 s)
Flammability
Flame-retardant per IEC 60332-1; LSZH option
Packaging
Standard Length
500 m, 1000 m drums (by cross-section)
Packaging
Wooden or steel drums
Certifications
CCC, CE, RoHS, ISO 9001
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
