YHGB/T 5013.6 / IEC 60245-6

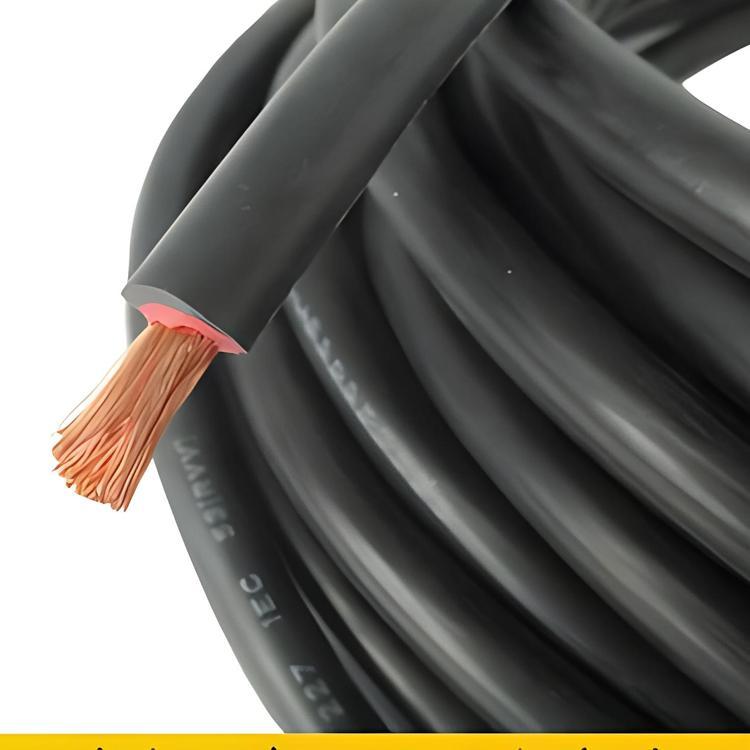

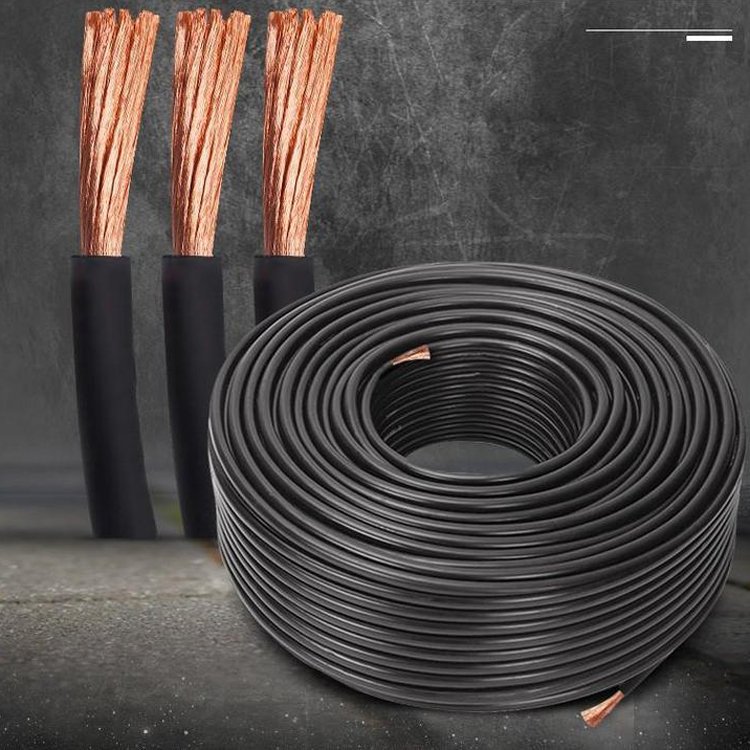

Rubber Welding Cable YH
450/750 V rubber-insulated welding cable, 16–95 mm² — extreme flexibility and high current for welding machines and battery banks.
Type
Rubber welding cable
Standard
GB/T 5013.6 / IEC 60245-6
Voltage Rating
450/750 V
Conductor
Class 6 extra-fine-wire bare copper
Jacket
EPR/CR rubber insulation & sheath
- ✓450/750 V rated to GB/T 5013.6 and IEC 60245-6
- ✓16, 25, 35, 50, 70, 95 mm²
- ✓Class 6 extra-fine-wire copper for maximum flexibility
- ✓Tough rubber insulation and sheath — oil, weather and abrasion resistant
- ✓Standard for welding machines, battery banks and temporary power
- ✓Custom drum lengths and colors on request
Full Specifications
Overview
Type
Rubber welding cable
Standard
GB/T 5013.6-2008, IEC 60245-6 (YH)
Rated Voltage
450/750 V
Rated Temperature
65 °C (max conductor temperature)
Application
Welding machines, battery banks, temporary power supply
Cross-Sections
16, 25, 35, 50, 70, 95 mm²
Construction
Conductor
Class 6 extra-fine-wire bare copper per IEC 60228
Insulation
EPR rubber, black
Sheath
CR rubber (integral or separate)
Flexibility
Extreme — designed for constant handling and coiling
Electrical Performance
Voltage Test
3 kV AC, 5 min
Conductor Resistance
Meets IEC 60228 Class 6
Ampacity
High current capacity for welding duty cycles
Weather Resistance
Suitable for outdoor and workshop use
Packaging
Standard Length
50 m, 100 m coils; drum lengths on request
Packaging
Coil, carton or wooden drum
Certifications
CCC, CE, RoHS
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
