UL1007UL 758 / UL 1581
UL 1007/1015 Hook-up Wire
UL/CSA approved 300 V (1007) and 600 V (1015) electronic hook-up wire for internal wiring of appliances and equipment.
Type
UL hook-up wire (electronic wire)
Standard
UL 758 / UL 1581
Voltage Rating
300 V (1007) / 600 V (1015)
Conductor
Solid or stranded tinned/ bare copper
Jacket
PVC insulation
- ✓UL 1007: 300 V, 80 °C; UL 1015: 600 V, 105 °C
- ✓UL/CSA approved, VW-1 flame rating
- ✓30–16 AWG (1007) and 28–10 AWG (1015)
- ✓Tinned copper option for easy soldering and corrosion resistance
- ✓RoHS compliant, stable colors for harness identification
- ✓Widely used in control cabinets, appliances, LED drivers and equipment
Full Specifications
Overview
Type
UL hook-up wire
Standard
UL 758, UL 1581, CSA C22.2 No. 210
Rated Voltage
300 V (UL1007) / 600 V (UL1015)
Temperature Rating
80 °C (1007) / 105 °C (1015)
Application
Internal wiring of appliances, control panels, LED drivers, electronics
AWG Range
30–16 AWG (1007), 28–10 AWG (1015)
Construction
Conductor
Solid or stranded bare/tinned copper per UL 758
Insulation
PVC, single layer
Color Options
Full color range incl. striped options
Flame Rating
VW-1
Electrical Performance
Voltage Test
Per UL 1581
Conductor Resistance
Per UL 758
Solderability
Tinned option for easy, reliable soldering
RoHS
Fully RoHS compliant
Packaging
Standard Length

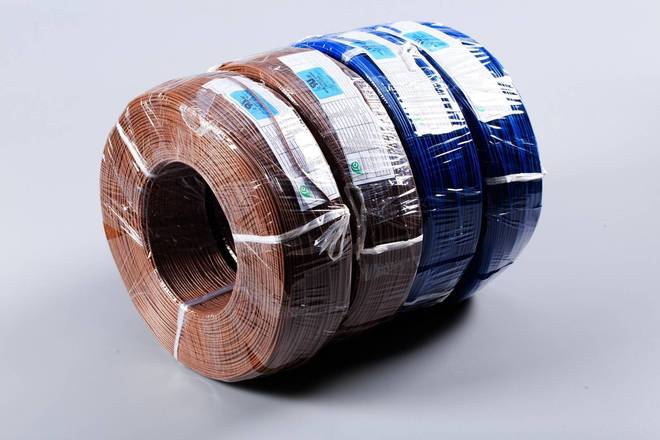

610 m (2000 ft) reels
Packaging
Reel, carton
Certifications
UL listed, CSA certified, RoHS
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
