RVVPGB/T 5023.3 / IEC 60227-3
Shielded Flexible Control Cable
300/300 V copper-braid screened cable for interference-free control and signal transmission next to power circuits.
Type
Shielded flexible control cable
Standard
GB/T 5023.3 / IEC 60227-3
Voltage Rating
300/300 V
Conductor
Class 5 fine-wire bare copper
Screening
Tinned copper braid, ≥ 85% coverage
Jacket
PVC sheath
- ✓300/300 V rated, screened construction

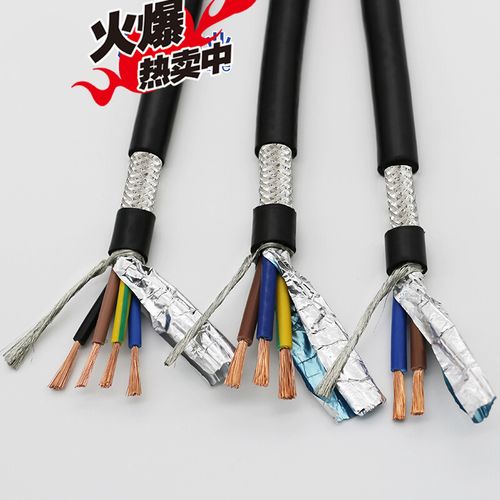

- ✓Tinned copper braid screen, 85% minimum coverage + drain wire
- ✓2–8 cores, 0.2–1.5 mm²
- ✓Suppresses EMI for clean analog and digital signals
- ✓Used in instrumentation, security, audio and control systems
- ✓Also available in double-shielded (foil + braid) construction
Full Specifications
Overview
Type
Shielded flexible control cable
Standard
GB/T 5023.3, IEC 60227-3
Rated Voltage
300/300 V
Rated Temperature
70 °C
Application
Control, instrumentation, security, audio and signal transmission
Core Configurations
2–8 cores × 0.2–1.5 mm²

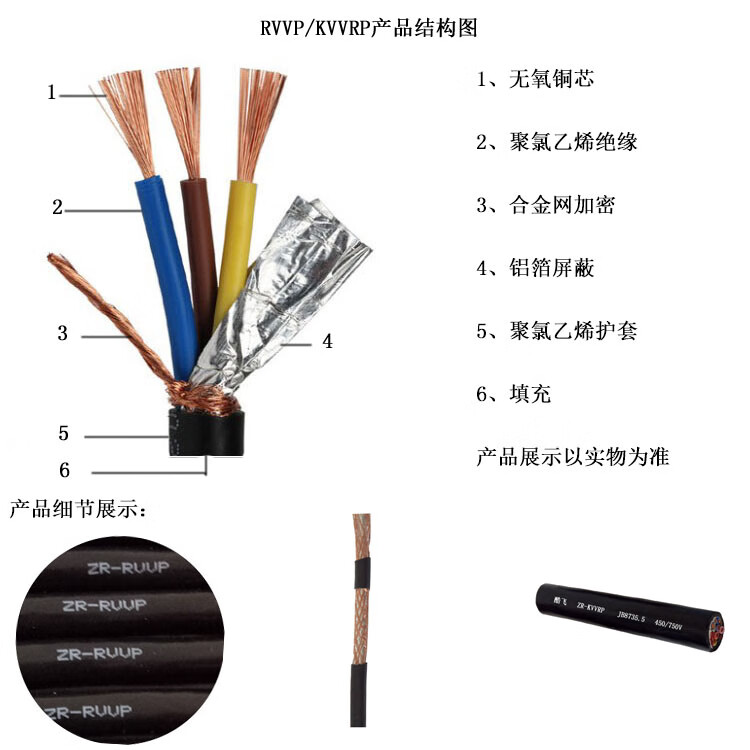

Construction
Conductor
Class 5 fine-wire bare copper
Insulation
PVC
Screen
Tinned copper braid, ≥ 85% coverage (foil + braid optional)
Sheath
PVC, grey or black
Core Identification
Color-coded cores
Electrical Performance
Voltage Test
1.5 kV AC, 5 min
Screening Effect
Effective EMI/RFI rejection with proper termination
Conductor Resistance
Meets IEC 60228 Class 5
Flammability
Flame-retardant per IEC 60332-1
Packaging
Standard Length
100 m coils (custom lengths on request)
Packaging
Coil, carton or drum
Certifications
CCC, CE, RoHS
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
