RVVGB/T 5023.5 / IEC 60227-5
Round PVC Sheathed Flexible Cord
300/500 V multi-core flexible cord for appliances, tools, control panels and light power — the workhorse of flexible wiring.
Type
Round PVC sheathed flexible cord
Standard
GB/T 5023.5 / IEC 60227-5
Voltage Rating
300/500 V
Conductor
Class 5 fine-wire bare copper
Jacket
PVC sheath
- ✓300/500 V rated to GB/T 5023.5 and IEC 60227-5
- ✓2–8 cores, 0.5–6 mm² per core
- ✓Class 5 fine-wire copper for continuous flexing
- ✓Flame-retardant PVC insulation and sheath
- ✓Ideal for appliances, power tools, control panels and light machinery
- ✓Custom colors, printing and cut lengths for OEM
Full Specifications
Overview
Type
Round PVC sheathed flexible cord
Standard
GB/T 5023.5-2008, IEC 60227-5
Rated Voltage
300/500 V
Rated Temperature
70 °C
Application
Appliances, power tools, control panels, light power and signal
Core Configurations
2, 3, 4, 5, 6, 8 cores × 0.5–6 mm²
Conductor & Construction
Conductor
Class 5 fine-wire bare copper per IEC 60228
Insulation
Flame-retardant PVC
Sheath
PVC, round profile
Sheath Color
Black, white, grey, custom
Core Identification
Color-coded cores per standard
Electrical Performance
Voltage Test
2 kV AC, 5 min
Conductor Resistance
Meets IEC 60228 Class 5
Flex Life
High — fine-wire stranding for moving applications
Flammability
Flame-retardant per IEC 60332-1
Packaging
Standard Length

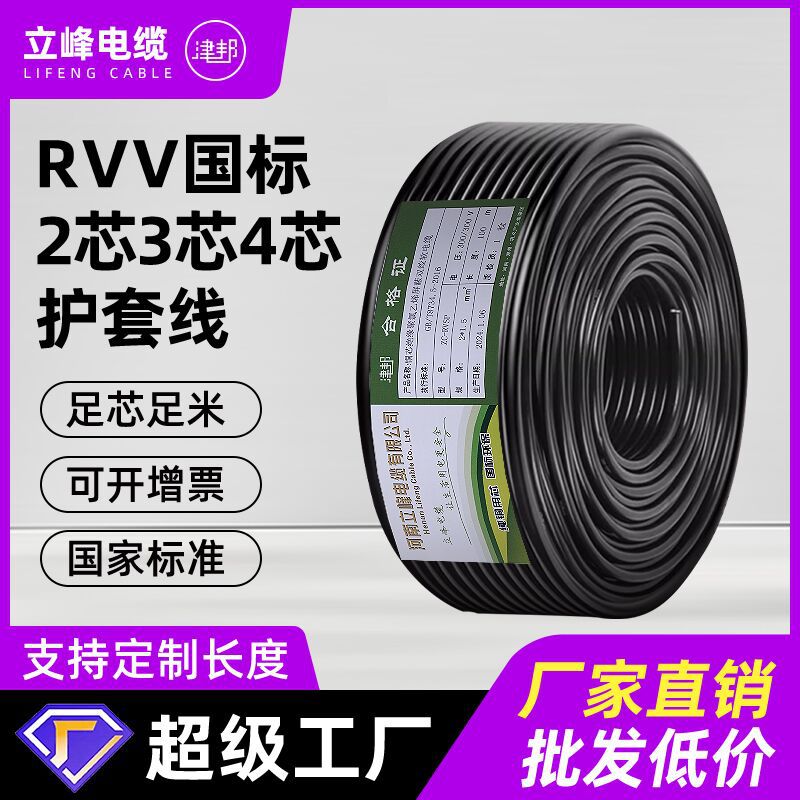

100 m coils (custom lengths and cut pieces)
Packaging
Coil, carton or drum
Certifications
CCC, CE, RoHS, REACH
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
