RVBGB/T 5023 / IEC 60227

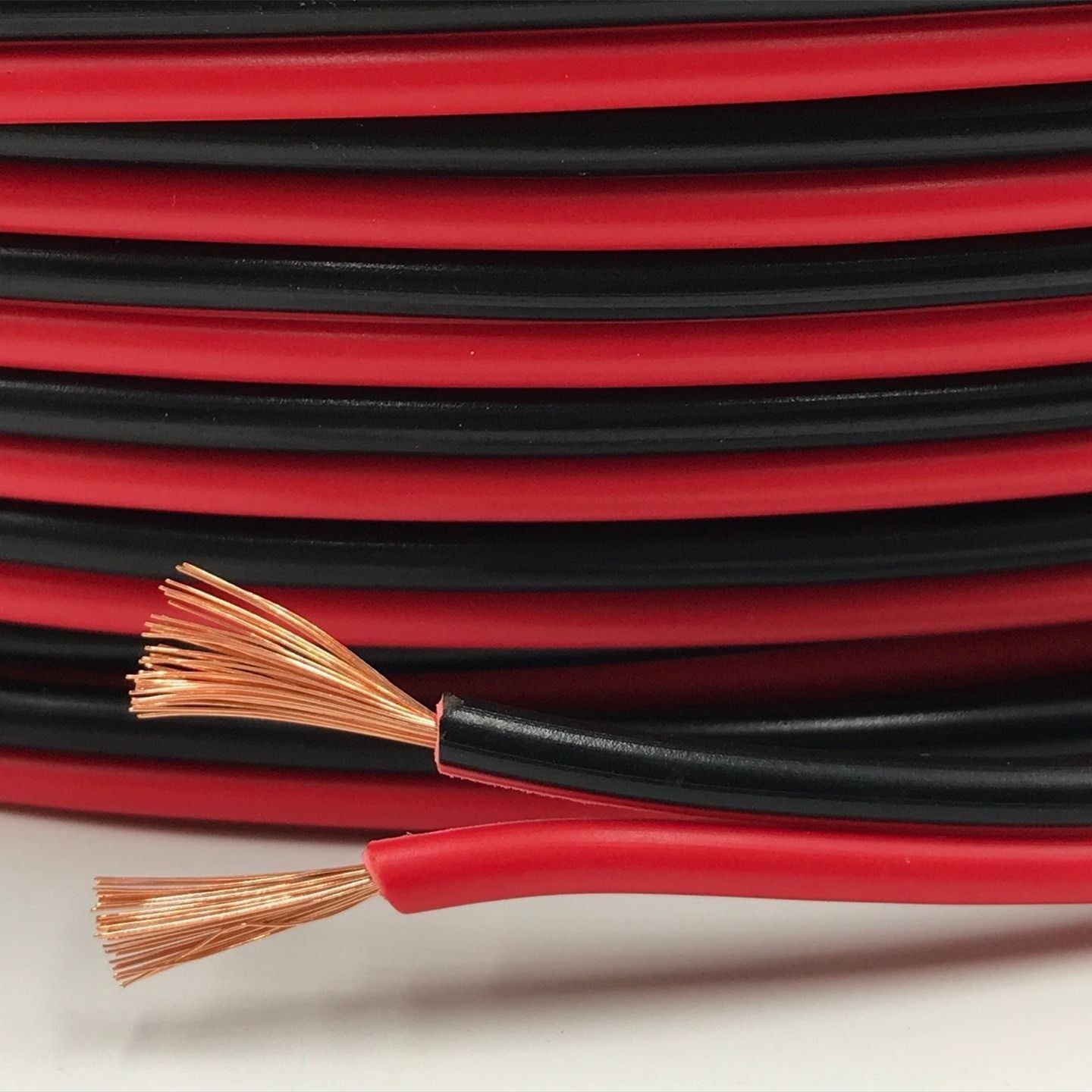

Flat Parallel Flexible Cord
Red/black twin parallel cord for speakers, LED lighting and low-power connections — simple, flexible, dependable.
Type
Flat parallel flexible cord
Standard
GB/T 5023 / IEC 60227
Voltage Rating
300/300 V
Conductor
Class 5 fine-wire bare copper
Jacket
PVC insulation (flat twin)
- ✓Red/black twin parallel construction
- ✓0.5–2.5 mm² per core
- ✓Oxygen-free copper for clean audio and low-voltage power
- ✓Flat profile — easy to strip, route and terminate
- ✓Popular for speakers, LED strips, doorbells and low-power devices
- ✓Custom colors and cut lengths for OEM
Full Specifications
Overview
Type
Flat parallel flexible cord (twin lead)
Standard
GB/T 5023, IEC 60227
Rated Voltage
300/300 V
Rated Temperature
70 °C
Application
Speakers, LED lighting, doorbells, low-power connections
Core Configurations
2 cores × 0.5, 0.75, 1.0, 1.5, 2.5 mm²
Construction
Conductor
Class 5 fine-wire oxygen-free copper
Insulation
PVC, red and black
Profile
Flat parallel (twin lead)
Custom Options
Custom colors, printed polarity marks, cut lengths
Electrical Performance
Voltage Test
1.5 kV AC, 5 min
Conductor Resistance
Meets IEC 60228 Class 5
Flammability
Flame-retardant per IEC 60332-1
Packaging
Standard Length

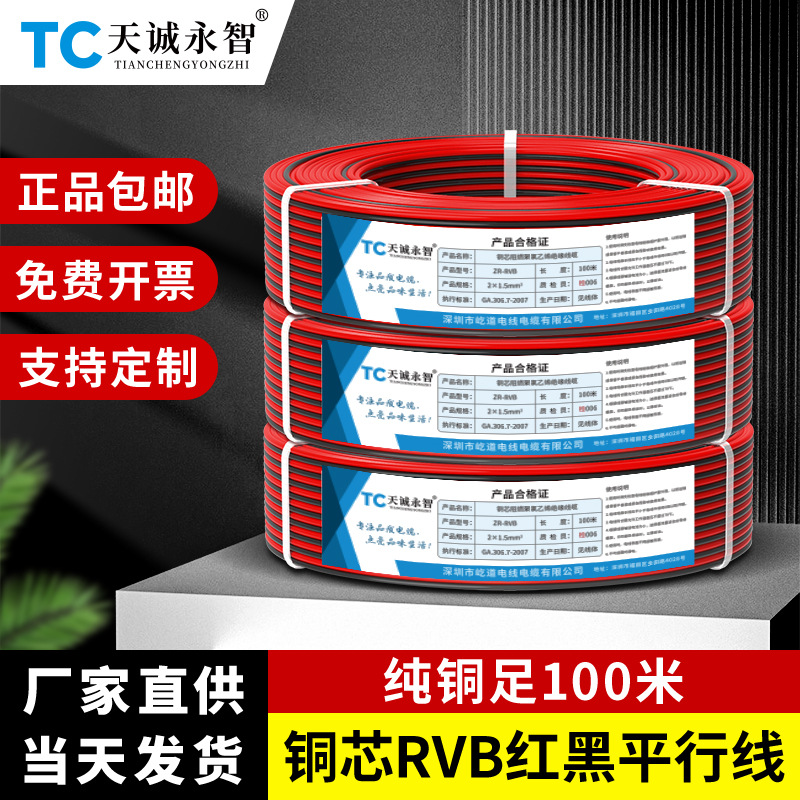

100 m coils, 200 m reels
Packaging
Coil, carton or reel
Certifications
CE, RoHS
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
