H05VV-FEN 50525-2.11 / IEC 60227-5

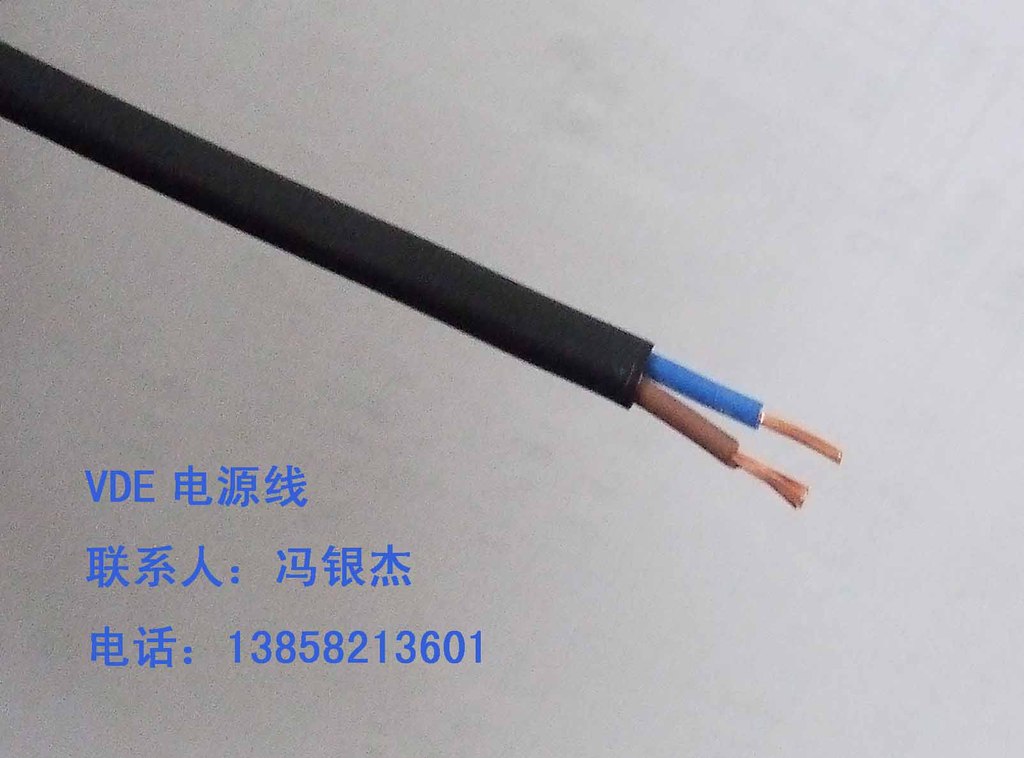

European Flexible Cord H05VV-F
VDE/CE approved 300/500 V flexible cord for appliances, power tools and light-duty equipment — the European standard.
Type
European flexible cord (light duty)
Standard
EN 50525-2.11 / IEC 60227-5
Voltage Rating
300/500 V
Conductor
Class 5 fine-wire bare copper
Jacket
PVC sheath
- ✓VDE/CE approved to EN 50525-2.11 (H05VV-F)
- ✓300/500 V, 70 °C rated
- ✓2–5 cores, 0.75–2.5 mm²
- ✓Class 5 fine-wire copper for flexible service
- ✓Popular for home appliances, tools, lamps and light equipment
- ✓Custom colors, printing and terminated leads for OEM
Full Specifications
Overview
Type
European flexible cord H05VV-F
Standard
EN 50525-2.11, IEC 60227-5 (H05VV-F)
Rated Voltage
300/500 V
Rated Temperature
70 °C
Application
Home appliances, power tools, lamps, light equipment
Core Configurations
2G, 3G, 4G, 5G × 0.75–2.5 mm²
Construction
Conductor
Class 5 fine-wire bare copper per EN 60228
Insulation
PVC
Sheath
PVC, round
Sheath Color
Black, white, grey, custom
Core Identification
Brown/blue/green-yellow per harmonized code
Electrical Performance
Voltage Test
2 kV AC, 5 min
Conductor Resistance
Meets EN 60228 Class 5
Flammability
Flame-retardant per EN 60332-1-2
Approvals
VDE, CE, RoHS, REACH
Packaging
Standard Length
100 m coils, custom cut lengths
Packaging
Coil, carton or drum
Certifications
VDE, CE, RoHS, REACH
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
