BVVGB/T 5023.4 / IEC 60227-4
PVC Insulated & Sheathed Flat Cable
300/500 V flat sheathed cable for surface mounting — insulation and sheath in one, no conduit required.
Type
PVC insulated & sheathed flat cable
Standard
GB/T 5023.4 / IEC 60227-4
Voltage Rating
300/500 V
Conductor
Class 1 solid or Class 2 stranded bare c
Jacket
PVC sheath
- ✓300/500 V rated to GB/T 5023.4 and IEC 60227-4

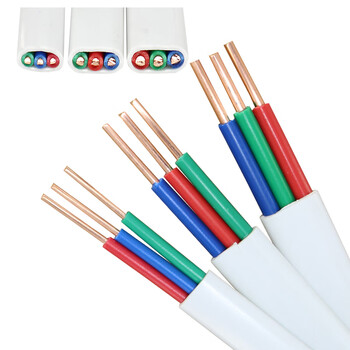

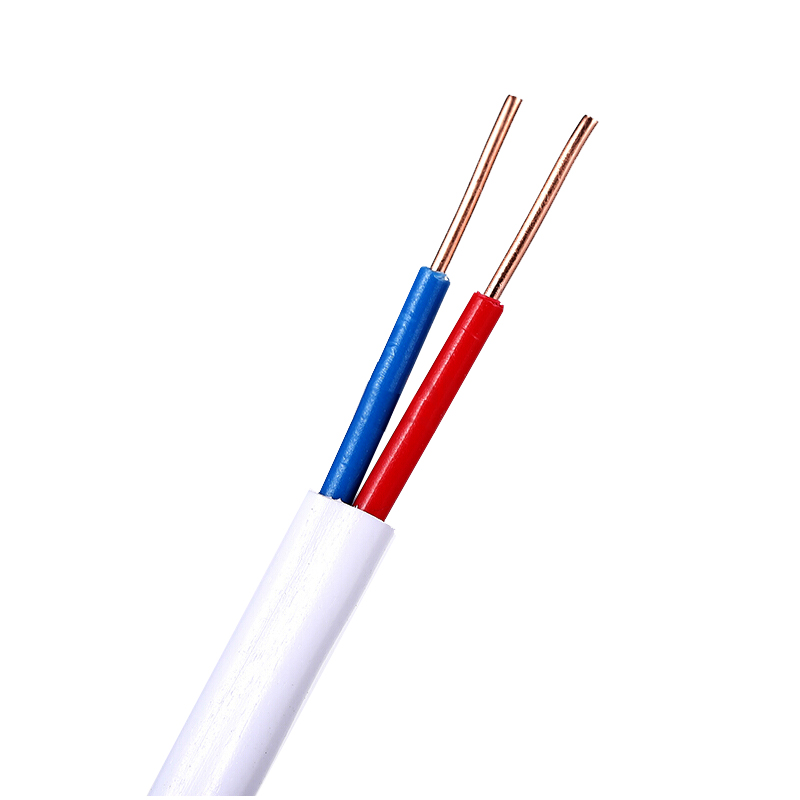

- ✓2 or 3 cores, 1.5–10 mm² per core
- ✓Flat profile lies flush on walls — surface mounting without conduit
- ✓100% bare copper, flame-retardant PVC insulation and sheath
- ✓Popular for house wiring renovation and temporary supply
- ✓White or grey sheath, custom printing available
Full Specifications
Overview
Type
PVC insulated & sheathed flat cable
Standard
GB/T 5023.4-2008, IEC 60227-4
Rated Voltage
300/500 V
Rated Temperature
70 °C
Application
Surface-mounted house wiring, fixed installation
Core Configurations
2-core, 3-core (2×1.5 to 2×10, 3×1.5 to 3×10 mm²)
Construction
Conductor
Solid or stranded bare copper
Insulation
Flame-retardant PVC
Sheath
PVC, flat profile
Sheath Color
White, grey, custom
Cores
2 or 3 cores, color-coded (red/blue or brown/blue/green-yellow)
Electrical Performance
Voltage Test
2 kV AC, 5 min
Conductor Resistance
Meets IEC 60228
Flammability
Flame-retardant per IEC 60332-1
Packaging
Standard Length
100 m coils
Packaging
Shrink-wrapped coil, carton or pallet
Certifications
CCC, CE, RoHS
Specifications are indicative for the standard configuration and subject to change with continuous product improvement. Confirm final parameters with our sales team for your order.
